LUKE LAMP CO
Tracer Loop Rainbox Test 2.jpg

Tracer Bar

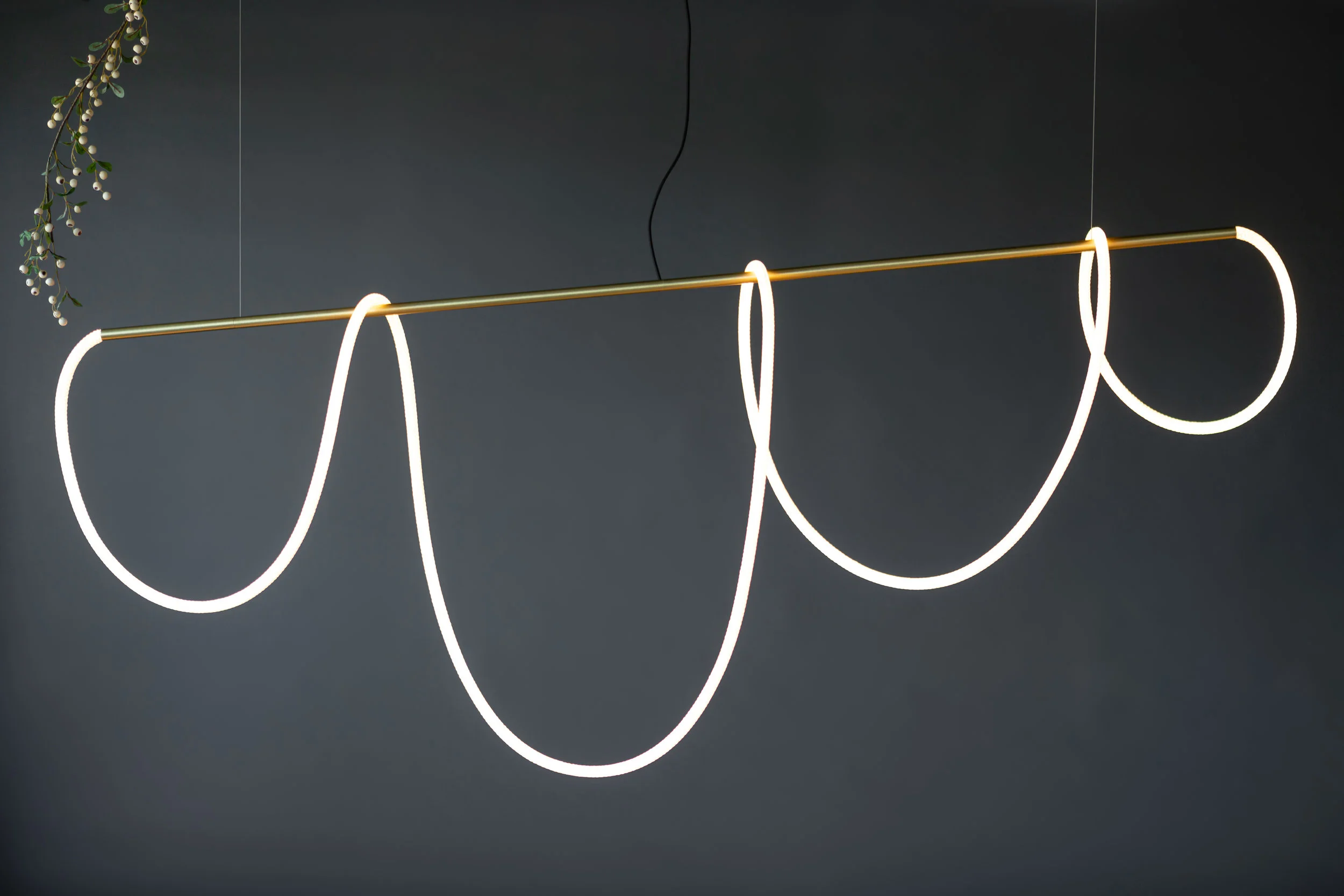

As pictured: 8’ Tracer Bar II - Standard Rope in Satin Brass

Tracer Bar I & II

Now outdoor rated!

4’ Bar
Tracer Bar I: $3,500
Tracer Bar II: $4,200

6’ Bar
Tracer Bar I: $4,500
Tracer Bar II: $5,200

8’ Bar
Tracer Bar I: $5,500
Tracer Bar II: $6,200

Inquire for lengths up to 16’


Certification Marks.png

FAQ’s | Request a Sample

For quotes and trade pricing: quotes@lukelampco.com

To request 3D files: 3D@lukelampco.com



8’ TRACER BAR I - STANDARD ROPE



8’ TRACER BAR I - LONG ROPE



8’ TRACER BAR II - STANDARD ROPE



8’ TRACER BAR II - LONG ROPE

SPECIFICATIONS

Lamping
- 200 lumens per ft (100 lumens/ft delivered)
- 3.5 watt/ft integral LED (inquire for fixture specific wattage)
- 2700K / 95+ CRI
- Dimmable / 120V
- Woven nylon diffuser
- 50,000 hour lifespan

Drivers
- Magnitude 0-10v driver (TRIAC upon request)
- Remotely mounted

Fixture Dimensions
- 4’ / 6’ / 8’ W (1" Ø) bar lengths (height varies)
- 1" Ø flexible lamping
- 5" Ø x 1/2" H ceiling canopy

Suspension Options
- Cable suspension: Up to 10’ drop to bar (field-adjustable)
- Rod suspension: Up to 4’ of 1/2" Ø vertical rod (length to order)

Finishes
- Satin Brass, Antique Brass, Blackened Brass, Polished Nickel, Satin Nickel, Satin Copper, Matte White

Leadtime
- Eight weeks after deposit and approval

Patented  |  UL Listed


HARDWARE FINISHES

2019 Finish Samples (Vertical) With Text.png

Styling Options

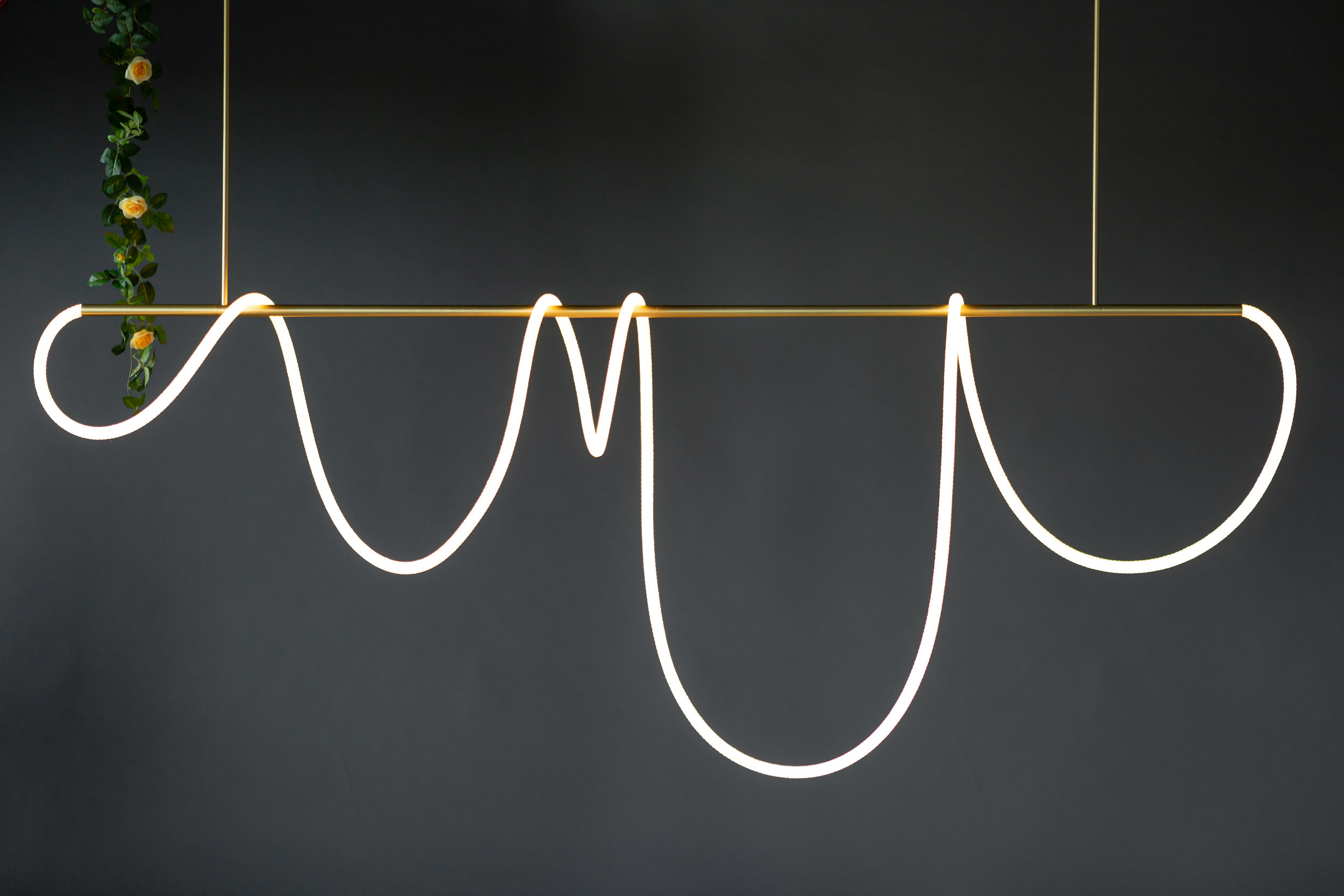

The Tracer Bar can be styled on site during installation in a variety of ways, such as in the photos shown below. The Tracer Bar I can also be adjusted to hang straight or at an angle. Please inquire for more information on styling the Tracer Bar.

Tracer Bar I


Tracer Bar II


Installations
