Tracer Loop Collection



About

Explore the endless possibilities of our Tracer Loop Collection. This showpiece of modern lighting is available in three options to suit your space: Curated Tracer Loop Layouts, Custom Tracer Loop Layouts and the Tracer Loop Free End.

Our Curated Layouts have been thoughtfully designed to create a stunning visual display that works with a variety of ceiling areas and heights. If the Curated Layouts do not fit within your design parameters or you have a specific vision in mind, our expert designers will collaborate with you to create a Custom Layout. Both options come with detailed shop drawings that depict the design, dimensions and specifications of each layout.

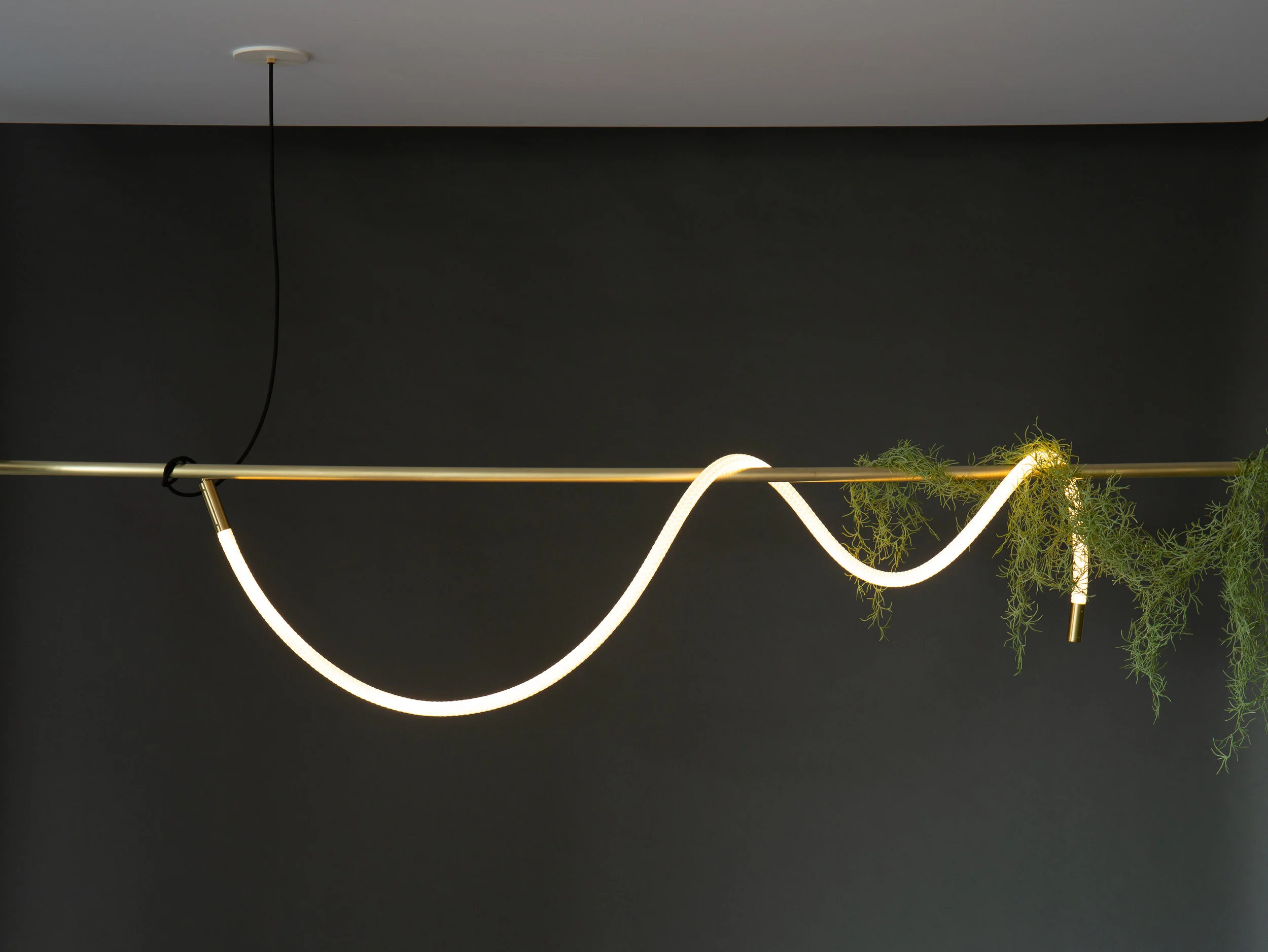

For those seeking to use the Tracer Loop in a more unconventional way, we have the Tracer Loop Free End. This options allows you to easily create a dramatic fixture by draping the Tracer Loop around a pre-existing or custom fabricated frame (not included by Luke Lamp Co.).






Curated Tracer Loop Layout


Overall Dimensions

Our carefully crafted Curated Layouts offer an array of options to suit varying ceiling areas and heights. The dimensions of each layout are fixed- this includes the area on the ceiling and the drops of the loops.

To help you choose which layout is best for your space, you will find them organized by the below recommended ceiling heights:

  • 8ft - 10ft

  • 10ft - 12ft

  • 12ft - 15ft

  • Over 15ft

Design and Installation

We understand the importance of seamless integration, which is why we provide detailed shop drawings that depict the design, dimensions and specifications of each layout. See example here.

Prior to production, we require customer approval on the shop drawings, ensuring confidence that the fixture will fit in your desired location. Our Curated Layouts also come with install instructions to help provide peace of mind during installation.

Please note, the ceiling plane shown in the product images for Curated Layouts is not included. Each loop mounts individually to the ceiling as explained in the installation instructions.

Mounting

All Curated Layouts use our Flush Mount hardware, which is designed to mount directly to a hollow ceiling material without junction boxes (see installation guide here).

If you have exposed ceilings and require junction boxes for mounting, we can provide adapted Flush Mount hardware that is compatible with junction boxes (see installation guide here). Please reach out for more information on this option.

Pricing

Curated Layouts are priced per layout with the dimensions exactly as shown. If you need to adjust the dimensions, please refer to our Custom Layout pricing.

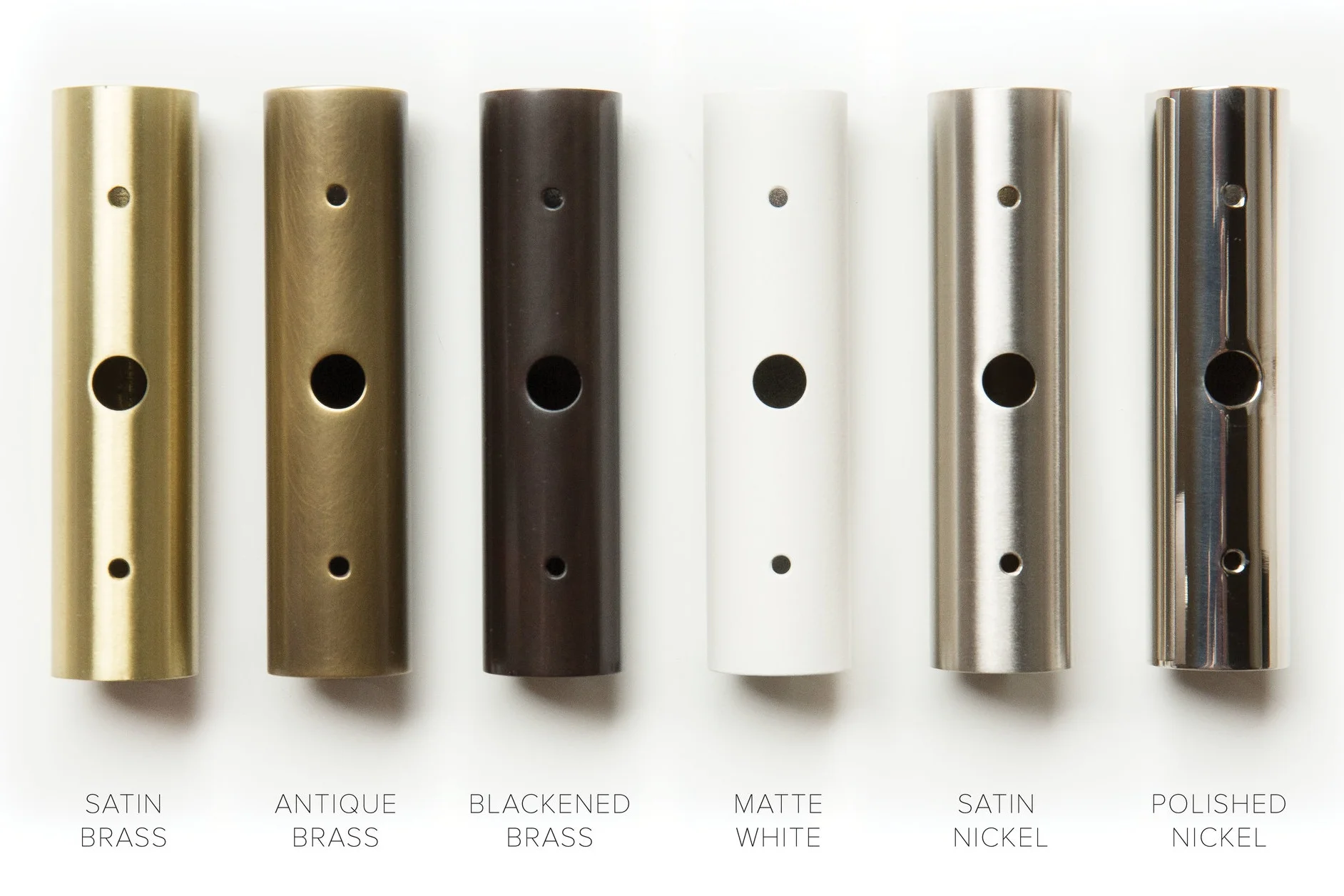

Finishes

*Curated Layouts can also be ordered in Matte White.





Custom Tracer Loop Layout


Design and Ordering Process

If one of our Curated Layouts does not fit within your design parameters, we’re happy to assist with making a Custom Layout! See our Custom Layout process below:

  • Submit the Custom Layout Inquiry Form: We will get back to you within two business days to begin the design process.

  • 3D Model Creation (1-2 week turnaround): Luke Lamp Co. will create an initial 3D layout for review and approval. Please refer to page 2 of the tearsheet for the list of required information to create a layout. At this phase, we are happy to make design revisions as needed.

  • Deposit Payment: Once the 3D layout is approved, we will send an invoice for the payment needed to move forward with the shop drawings.

  • Shop Drawings (1-2 week turnaround): After payment has been received, Luke Lamp Co. will create detailed shop drawings with all dimensions and specifications for review and approval. If there are any changes to the design/cost, this will be reflected on the balance invoice.

  • Production (8-10 week leadtime): Upon approval of the shop drawings, production of the order will commence.

  • Balance Payment (applies to orders over $7500): Luke Lamp Co. requests the balance payment at least 2 weeks prior to the estimated ship date to avoid any delays.

  • Shipment: Upon completion of production and receipt of complete payment, the order will be shipped. There will be a hard copy of the approved shop drawings included in the box.

Mounting

FLUSH MOUNT

View Installation Guide
View Tearsheet

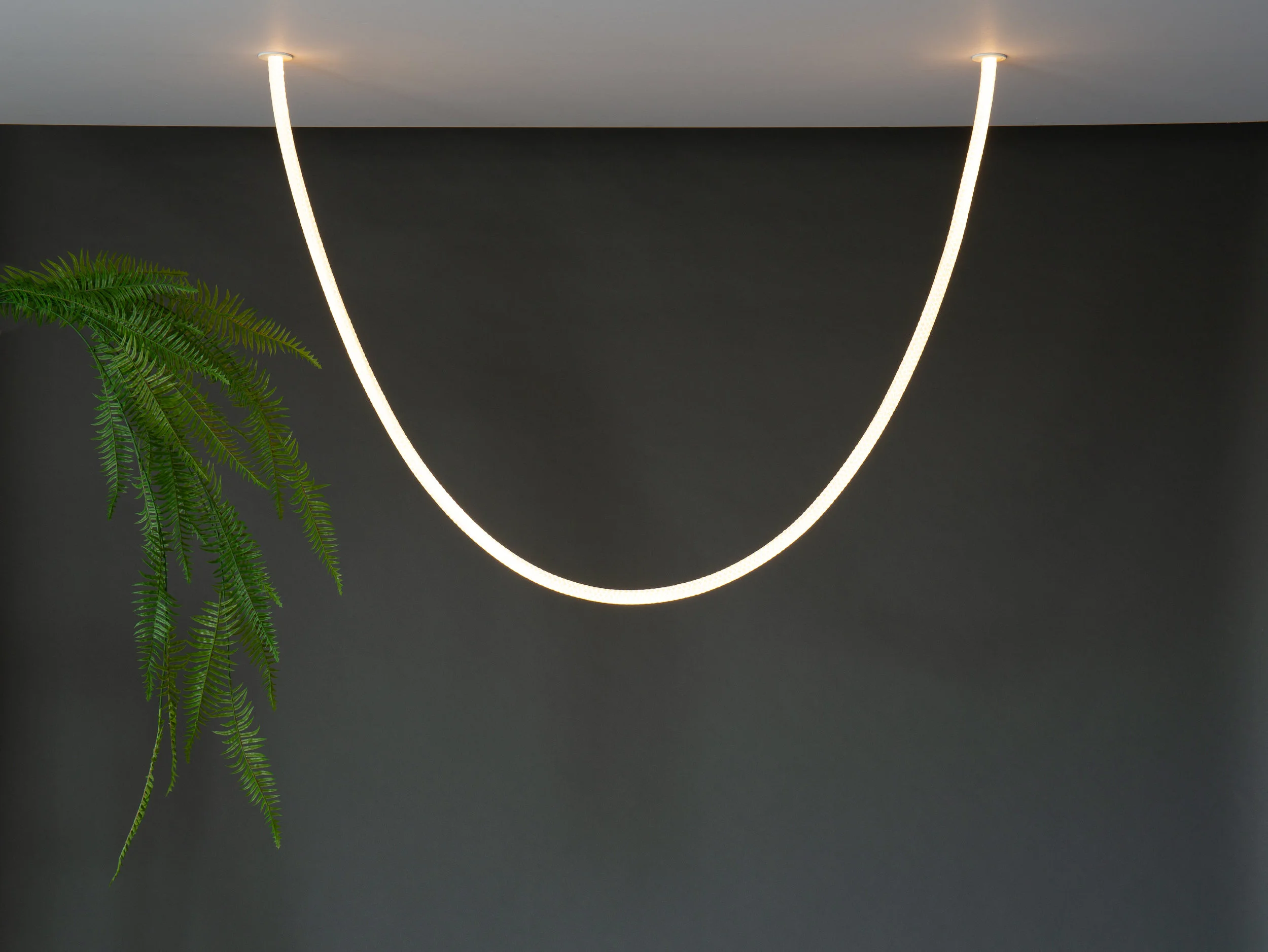

Our most minimal reveal (2.25” diameter and 1/8” thick). This option is UL listed for use without junction boxes, which allows for a very simple installation process. Available in any of our standard finishes. If you have exposed ceilings and require junction boxes, see this installation guide for an alternative mounting option.

DIRECT TO CANOPY

View Installation Guide
View Tearsheet

An elegant option with an added hardware detail designed for ease of installation with standard junction boxes. The 3.5” long endcaps and 5” diameter ceiling canopies are available in any of our standard finishes.

Note: This option is not suitable for smaller/shallower installations due to the projection of the endcap from the ceiling. The overall thickness of the hardware is 3.75".

PENDANT TO CANOPY

View Installation Guide
View Tearsheet

Suitable for larger spaces or where field-adjustability is desired, this option includes 10’ of pendant cord on each end (longer lengths available upon request) and 5” round ceiling canopies for mounting to standard junction boxes.

Pricing

Our Custom layouts require a lengthier design and approval process, therefore they have a higher price point than our Curated Layouts. Each Custom Layout will be priced by loop length based on the following tiers:

  • Up to 5ft Length (6in - 60in) - $2,200

  • Up to 10ft Length (61in - 120in) - $2,600

  • Up to 15ft Length (121in - 180in) - $3,000

  • Up to 20ft Length (181in - 240in) - $3,400

  • Up to 25ft Length (241in - 300in) - $3,800

  • Up to 30ft Length (301in - 360in) - $4,200

Finishes


Tracer Loop Free End


Design

The perfect solution for value-engineered projects, the Free End allows you to easily create a dramatic fixture by draping the Tracer Loop around a pre-existing or custom fabricated frame (not included by Luke Lamp Co.). The non-powered end terminates in a simple finishing cap, while the powered end is connected with field-adjustable pendant cord (unless you choose another mounting option) to a standard junction box.

Note: This fixture does not include a bar/frame for suspension - this would need to be sourced separately. When ordering, please specify the Tracer Loop length that you would like.

Mounting

PENDANT TO CANOPY

View Installation Guide
View Tearsheet

Suitable for larger spaces or where field-adjustability is desired, this option includes 10’ of pendant cord on each end (longer lengths available upon request) and 5” round ceiling canopies for mounting to standard junction boxes.

FLUSH MOUNT

View Installation Guide
View Tearsheet

Our most minimal reveal (2.25” diameter and 1/8” thick). This option is UL listed for use without junction boxes, which allows for a very simple installation process. Available in any of our standard finishes. If you have exposed ceilings and require junction boxes, see this installation guide for an alternative mounting option.

DIRECT TO CANOPY

View Installation Guide
View Tearsheet

An elegant option with an added hardware detail designed for ease of installation with standard junction boxes. The 3.5” long endcaps and 5” diameter ceiling canopies are available in any of our standard finishes.

Pricing

Pricing for this fixture is based on the individual Loop length:

  • Up to 5ft Length (6in - 60in) - $2,200

  • Up to 10ft Length (61in - 120in) - $2,600

  • Up to 15ft Length (121in - 180in) - $3,000

  • Up to 20ft Length (181in - 240in) - $3,400

  • Up to 25ft Length (241in - 300in) - $3,800

  • Up to 30ft Length (301in - 360in) - $4,200

Finishes
